Buy Smooth-On at FormX

Smooth-On is one of the worlds leading manufaturers 3D modeling materials such as mold-making, casting and special effects materials but also industrial casting resins, adhesives and equipment. FormX is main distributor of Smooth-On products in Europe.

Onyx PU casting resin

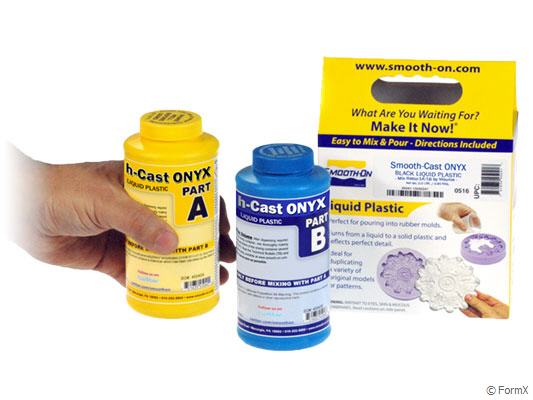

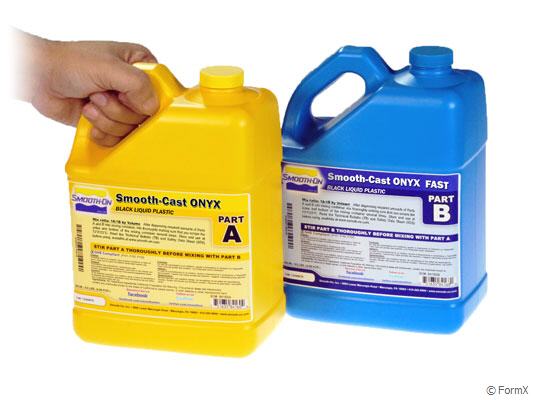

Smooth-Cast ONYX™ is a mercury-free urethane resin that cures at room temperature to a deep black, solid plastic.

ONYX™ resins offer the convenience of a 1A:1B by volume mix ratio and have very low viscosities, so they are easy to mix and pour. ONYXresins have an ultimate

Shore hardness of 80D. ONYXresins are available in 2 speeds.

ONYX™ FAST resin has a pot life of 2.5 minutes and a cure time of 10-15 minutes
ONYX™ SLOW has a pot life of 5 minutes and a cure time of 90 minutes

Advantages:

cured plastic is ultra-black and darker than competitive black resins
can be polished and buffed to a high gloss shine
offers higher heat resistance vs. competitive black resins
does not contain mercury
less expensive vs. other black resins.

Applications include reproducing sculpture, making prototypes and potting / encapsulation. Due to it's quick cure time and hardness, ONYX™ FAST is a good choice for creating fast cold cast bronze, brass, copper, nickel/silver, etc. effects.

Technical bulletin Smooth-Cast Onyx

Products

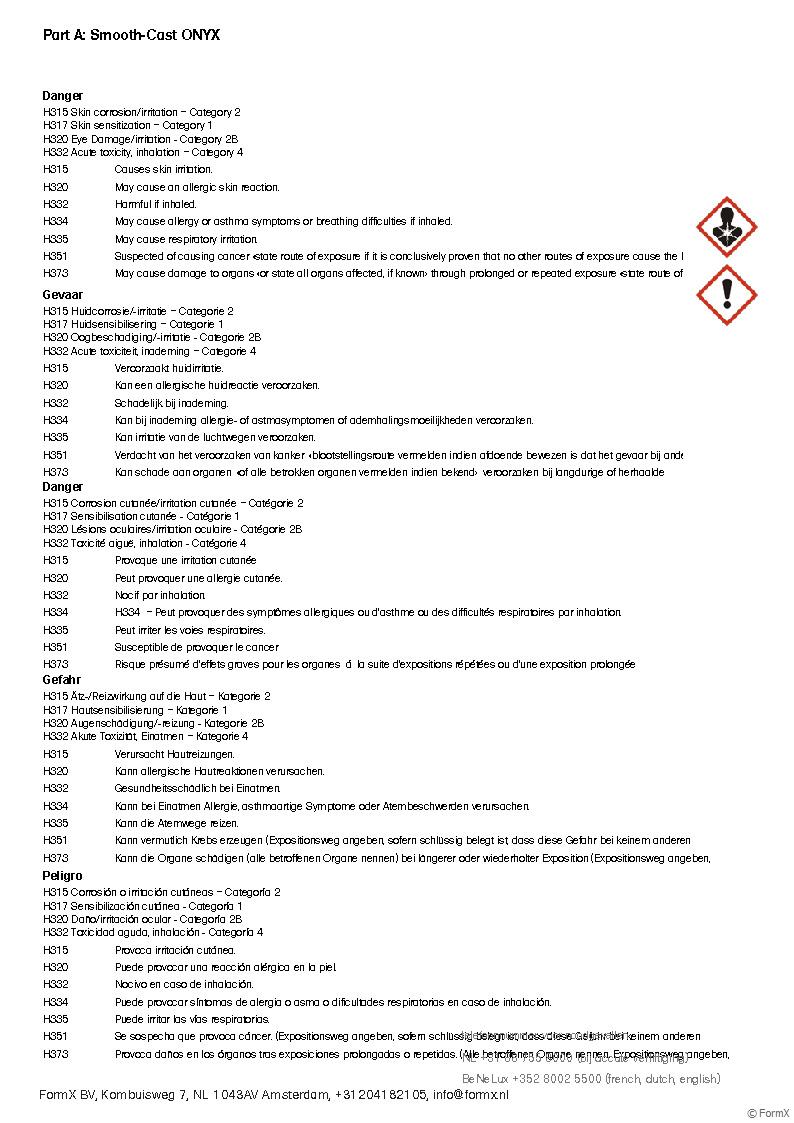

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

- Read the safety information label. Click on the image

- Lisez les informations de sécurité cliquez sur l'image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

Smooth-Cast Onyx products

  • Onyx Fast /1 kg

    Shore Hardness 80 D Cure Time 15 min

    31,90 EUR

  • Onyx Fast /7,2 kg

    Shore Hardness 80 D Cure Time 15 min

    176,13 EUR

  • Onyx Slow /1 kg

    Shore Hardness 80 D Cure Time 90 min

    31,58 EUR

  • Onyx Slow /7,2 kg

    Shore Hardness 80 D Cure Time 90 min

    176,13 EUR

Video
Information

Smooth-Cast Onyx Data

name mixing ratio color demold time mixed viscosity pot life tensile strength shore hardness specific gravity kg/lt comp. strength
Onyx Fast 1A:1B Black 10-15 min 100 cps 2.5 min 5840 psi 80D 0,999 8760 psi
Onyx Slow 1A:1B Black 90 min 100 cps 5 min 7660 psi 80D 0,999 11400 psi
++
