Description
This high-performance platinum-cure liquid silicone compound is used for creating skin effects, movie special effects, and production molds.

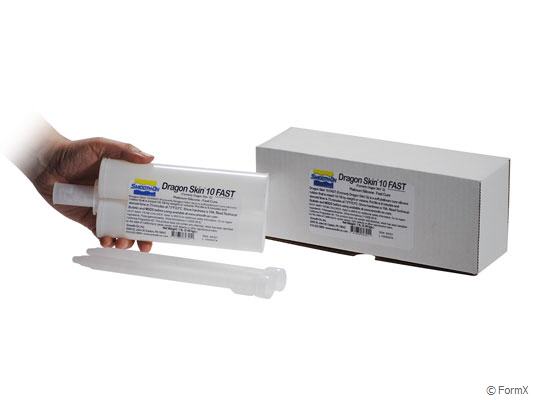

Dragon Skin™ 10 FAST is also suitable for medical prosthetics and cushioning applications.
The material is flame-rated to UL-94 HB and meets the B1 classification in the GB 8624-2012 Fire Test for Building Materials and Products.
Features
- Versatile Material: Soft, strong, and stretchy, it can achieve infinite color effects with Silc Pig™ pigments or Cast Magic™ powders. Cured rubber can be painted with the Psycho Paint™ system and is skin safe.
- Easy to Use: Mixes 1A:1B by weight or volume. Can be thinned with Silicone Thinner™ or thickened with THI-VEX™. Cures at room temperature with negligible shrinkage. Vacuum degassing is recommended.
- Flame Rated: Meets UL-94 HB specification and B1 classification for fire tests.
Technical Properties
- Mix Ratio: 1A:1B by weight or volume
- Working time: 8 minutes
- Cure Time: 75 minutes
- Shore Hardness: 10 A
- Specific Gravity: 1.07 g/cc
- Specific Volume: 0.93 cm³/g
- Tensile Strength: 3.28 MPa
- 100% Modulus: 152 kPa
- Elongation @ Break: 1,000%
- Die B Tear Strength: 17.9 kN/m
- Color: Translucent
- Useful Temperature: -54°C to 232°C
- Dielectric Strength: >350 volts/mil
- Mixed Viscosity: 23,000 mPa·s
Instructions
Safety
Use in a well-ventilated area. Wear safety glasses, long sleeves, and rubber gloves. Use vinyl gloves only, as latex gloves inhibit curing.
Storage and Use
Store and use at room temperature (23°C). Warmer temperatures reduce working and cure time and shelf life.
Cure Inhibition
Contaminants like latex, sulfur clays, and certain woods may inhibit curing. Test compatibility on a small area. Use a clear acrylic lacquer as a sealer if needed.
Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.
Note: Even with a sealer, platinum silicones will not work with modeling clays containing heavy amounts of sulfur. Do a small scale test for compatibility before using on your project.
Applying A Release Agent
Use a release agent like Ease Release™ 200 for easier demolding. Brush lightly and mist over surfaces, allowing 30 minutes to dry.
Measuring and Mixing
Pre-mix Part B. Mix Parts A and B (1A:1B) thoroughly for 3 minutes, scraping sides and bottom. Vacuum degassing is recommended.
Curing / Post Curing
Cure at room temperature. Optional post-curing at 80°C for 2 hours and 100°C for 1 hour improves properties. Cool before use.
If Using As A Mold
Natural release characteristics may diminish over time. Use a release agent for casting resins to prevent mold degradation.
Thickening and Thinning
Use THI-VEX™ to thicken for vertical applications. Silicone Thinner™ reduces viscosity but may affect tear and tensile strength.
Mold Performance & Storage
Clean molds with soap and dry before storage. Store assembled molds on a level surface in a cool, dry place.
