VytaFlex™ Series

Buy Smooth-On at FormX

Smooth-On is one of the worlds leading manufaturers 3D modeling materials such as mold-making, casting and special effects materials but also industrial casting resins, adhesives and equipment. FormX is main distributor of Smooth-On products in Europe.

VytaFlex™ Series

Using Smooth-On’s exclusive “V-Polymer” technology, VytaFlex urethane rubbers are “next generation” products to our popular PMC- Series and offer superior physical and performance properties. VytaFlex urethanes are available in 10A 20A, 30A, 40A, 50A and 60A Shore hardness’s and feature convenient one-to-one by volume mix ratios. Vacuum degassing is not necessary and VytaFlex rubbers cure with negligible shrinkage to a durable rubber that will last in production.

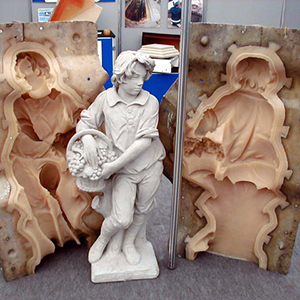

VytaFlex mold rubbers are used for a variety of applications including making molds to reproduce sculpture and architectural elements, as well as for making special effects, toys and prototypes. They will meet the stringent demands of production casting of concrete, plasters, and other materials. Vibrant colors can be achieved by adding So-Strong Color Tints.

VytaFlex mold rubbers work especially well for casting pigmented / colored concrete or gypsum. Molds made with VytaFlex Series urethanes will render accurate and uniform colored castings.

Technical bulletin Vytaflex series

VytaFlex™ 10

Features

- Hardness: Shore A 10
- Elongation at Break: 1000 %
- Tensile Strength: 200 psi
- Colour: Creme

Vytaflex 10 Safety

- Read the safety information label. Click on the image

- Lea la etiqueta de información de seguridad. Haga clic en la imagen

- Lees het veiligheidsinformatie label. Klik op de afbeelding.

- Lesen Sie das Sicherheitsinformationsetikett. Klicken Sie auf das Bild.

- Lisez les informations de sécurité cliquez sur l'image

VytaFlex 10 products

VytaFlex™ 10 /0,91 kg Shore A10 | Cure Time: 24H 28,24 EUR

VytaFlex™ 10 /7,26 kg Shore A10 | Cure Time: 24H 184,21 EUR

VytaFlex™ 20

Features

- Hardness: Shore A 20
- Elongation at Break: 1000 %
- Tensile Strength: 200 psi
- Colour: Amber Transparant

VytaFlex 20 products

VytaFlex™ 20 /0,91 kg Shore A20 | Cure Time: 16H 25,71 EUR

VytaFlex™ 20 /7,26 kg Shore A20 | Cure Time: 16H 161,70 EUR

VytaFlex™ 20 /36,29 kg Shore A20 | Cure Time: 16H 701,49 EUR

VytaFlex™ 30

Features

- Hardness: Shore A 30
- Elongation at Break: 1000 %
- Tensile Strength: 500 psi
- Colour: Creme

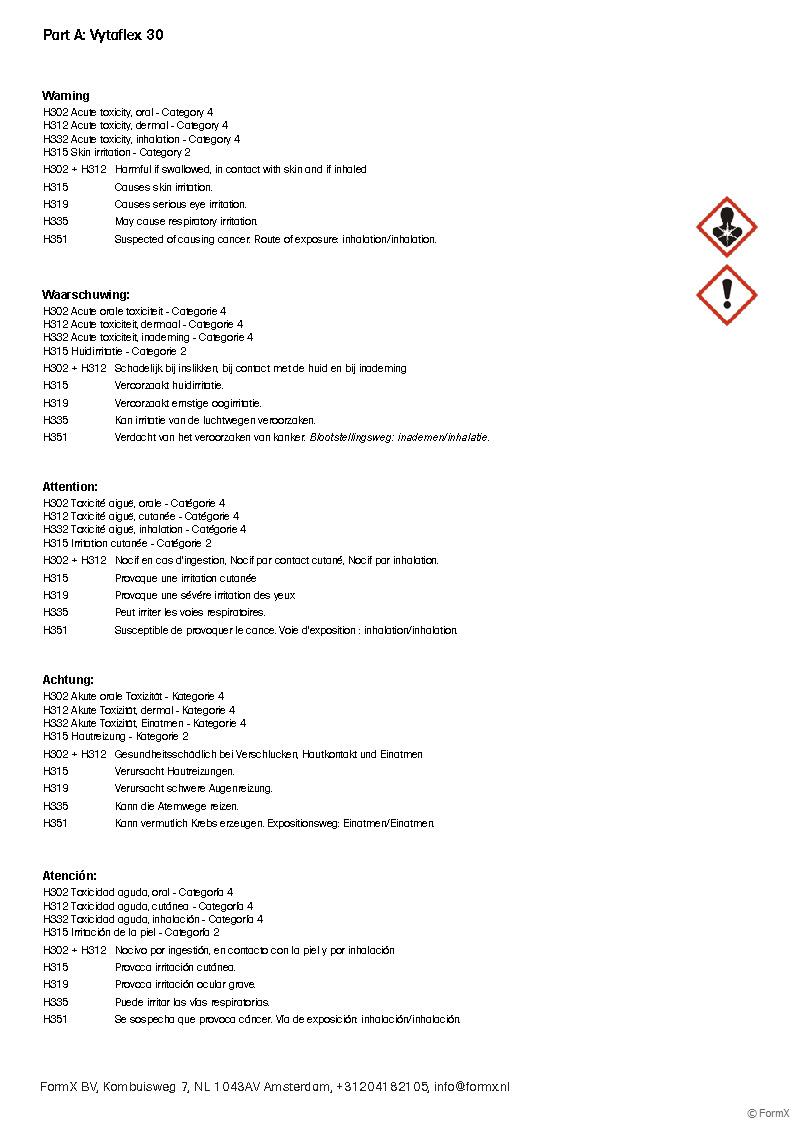

Vytaflex 30 Safety

VytaFlex 30 products

VytaFlex™ 30 /0,91 kg Shore A30 | Cure Time: 16H 25,71 EUR

VytaFlex™ 30 / 7,26 kg Shore A30 | Cure Time: 16H 161,70 EUR

VytaFlex™ 40

Features

- Hardness: Shore A 40
- Elongation at Break: 660 %
- Tensile Strength: 522 psi
- Colour: Creme

Vytaflex 40 Safety Information

VytaFlex 40 products

VytaFlex™ 40 /0,91 kg Shore A40 | Cure Time: 16H 25,71 EUR

VytaFlex™ 40 /7,26 kg Shore A40 | Cure Time: 16H 161,70 EUR

VytaFlex™ 40 /36,29 kg Shore A40 | Cure Time: 16H 701,49 EUR

VytaFlex™ 45

Features VF45

- Hardness: Shore A 45
- Elongation at Break: 900 %
- Tensile Strength: 886 psi
- Colour: Creme

VytaFlex 45 products

VytaFlex™ 45 /0,90 kg Shore A45 | Cure Time: 16H 25,71 EUR

VytaFlex™ 45 /7,26 kg Shore A45 | Cure Time: 16H 161,70 EUR

Vytaflex 45 Safety Information

Vytraflex 45 Safety Part A

Vytraflex 45 Safety Part B

VytaFlex™ 50

Features

- Hardness: Shore A 50
- Elongation at Break: 400 %
- Tensile Strength: 588 psi
- Colour: Creme

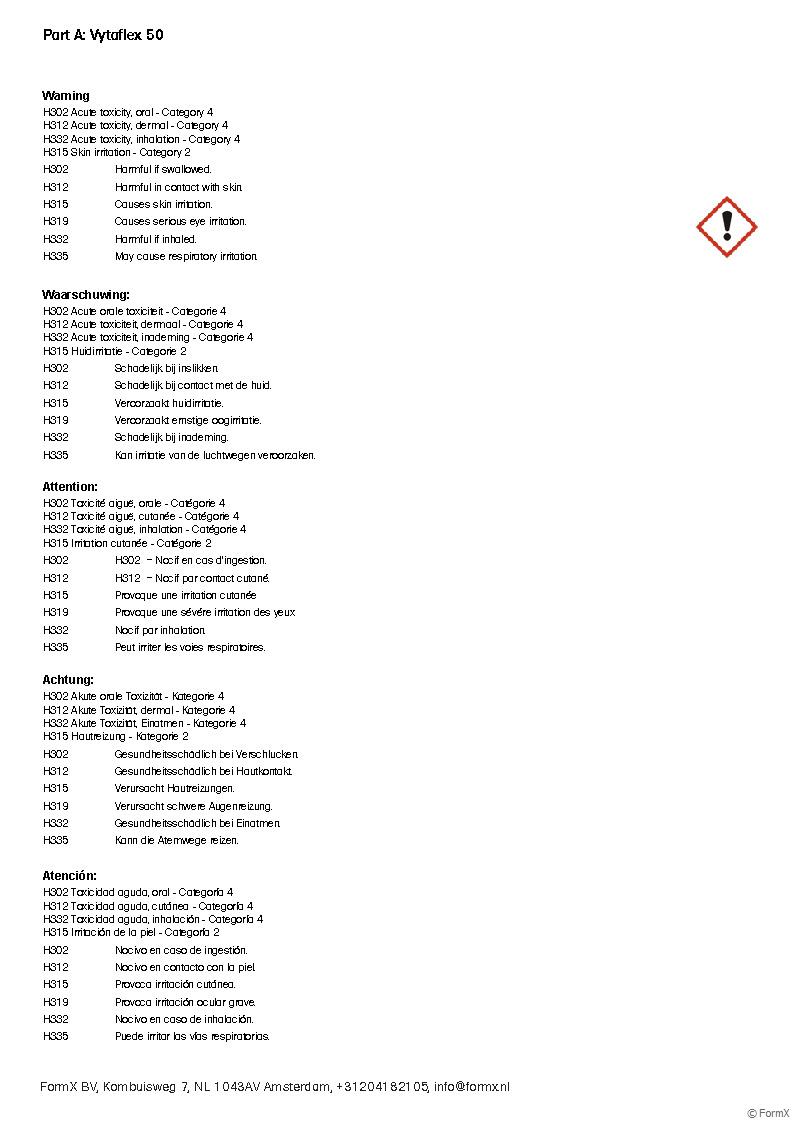

Vytaflex 50 safety

VytaFlex 50 products

VytaFlex™ 50 /0,91 kg Shore A50 | Cure Time: 16H 28,08 EUR

VytaFlex™ 50 /7,26 kg Shore A50 | Cure Time: 16H 180,99 EUR

VytaFlex™ 60

Features

- Hardness: Shore A 60
- Elongation at Break: 480 %
- Tensile Strength: 880 psi
- Colour: Creme

VytaFlex 60 products

VytaFlex™ 60 /0,91 kg Shore A60 | Cure Time: 16H 28,08 EUR

VytaFlex™ 60 /7,26 kg Shore A60 | Cure Time: 16H 180,99 EUR

VytaFlex™ 60 /36,29 kg Shore A60 | Cure Time: 16H 793,75 EUR

Table

Vytaflex Table

VYTAFLEX®	Mixture (by Volume)	Mixed Viscosity (mPas)	Specific Weight (g/cm⊃3;)	Pot Life (min)	Cure Time (hrs)	Colour	Hardness (Shore A)	Tensile Strength (N/mm)	Elongation at Break (%)	Schrinkage (%)
10	1A:1B	3100	1,00	30	24	creme	10	200 psi	1000	<0,1
20	1A:1B	1000	1,00	30	16	amberclear	20	200 psi	1000	<0,1
30	1A:1B	1800	1,02	30	16	creme	30	500 psi	1000	<0,1
40	1A:1B	2000	1,03	30	16	creme	40	522 psi	660	<0,1
45	1A:1B	2000	1,04	30	16	creme	45	886 psi	900	<0,1
50	1A:1B	2000	1,04	60	16	creme	50	588 psi	400	<0,1
60	1A:1B	2000	1,04	60	16	creme	60	880 psi	480	<0,1

Instructions

Preparation - Store and use at room temperature 23°C. These products have a limited shelf life and should be used as soon as possible. Environmental humidity should be as low as possible. Good ventilation (room size) is essential. Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk.

Some Materials Must Be Sealed - Urethanes are adhesive. To prevent adhesion between the rubber and model surface, models made of porous materials (gypsum plasters, concrete, wood, stone, etc.) must be sealed prior to applying a release agent. SuperSeal™ available from Form X or One Step ™ are fast drying sealers suitable for sealing porous surfaces without interfering with surface detail. Sonite Wax™or high-grade shellac is suitable for rough contours. A high quality Shellac is suitable for sealing modeling clays that contain sulfur or moisture (water based). Thermoplastics (polystyrene) must also be sealed with shellac or PVA. In all cases, the sealing agent should be applied and allowed to completely dry prior to applying a release agent.

Non-Porous Surfaces - Metal, glass, hard plastics, sulfur free clays, etc. require only a release agent.

IMPORTANT: Shelf life of product is reduced after opening. Remaining product should be used as soon as possible. Immediately replacing the lids on both containers after dispensing product will help prolong the shelf life of the unused product. XTEND-IT™ Dry Gas Blanket available fromForm X will significantly prolong the shelf life of unused liquid urethane products.

Applying A Release Agent - A release agent is necessary to facilitate demolding when casting into or over most surfaces. Use a release agent made specifically for mold making (Universal™Mold Release available from Form X). A liberal coat of release agent should be applied onto all surfaces that will contact the rubber.

IMPORTANT: To ensure thorough coverage, lightly brush the release agent with a soft brush over all surfaces of the model. Follow with a light mist coating and let the release agent dry for 30 minutes. Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

MEASURING & MIXING - Liquid urethanes are moisture sensitive and will absorb atmospheric moisture. Mixing tools and containers should be clean and made of metal or plastic. Materials should be stored and used in a warm environment 23°C.

IMPORTANT: Pre Mix the Part B before using. After dispensing equal amounts of Parts A and B into mixing container, mix thoroughly for at least 3 minutes making sure that you scrape the sides and bottom of the mixing container several times.

If Mixing Large Quantities 7 kg or more at one time, use a mechanical mixer (i.e. Squirrel Mixer or equal) for 3 minutes followed by careful hand mixing for one minute as directed above. Then, pour entire quantity into a new, clean mixing container and do it all over again.

Although this product is formulated to minimize air bubbles in your the cured rubber, vacuum degassing prior to pouring rubber will further reduce entrapped air.

POURING, CURING & PERFORMANCE - For best results, pour your mixture in a single spot at the lowest point of the containment field. Let the rubber seek its level up and over the model. A uniform flow will help minimize entrapped air. The liquid rubber should level off at least 1.3 cm over the highest point of the model surface.

Curing - Allow rubber to cure a minimum of 16 – 24 hours at room temperature 23°C before demolding. VytaFlex™ 10 should cure for at least 24 hours before demolding. Cure time can be reduced with mild heat or by adding Smooth-On “KickIt™ ” Cure Accelerator. Do not cure rubber where temperature is less than 18°C.

Post Curing - Optional . . . Following an overnight cure, heating the rubber to 65°C for 4 to 8 hours will increase physical properties and performance.

Using The Mold - If using as a mold material, a release agent should be applied to the mold before each casting. In & Out ™ II Concrete Release Concentrate available from Form X is recommended for releasing concrete.

Performance & Storage - Fully cured rubber is tough, durable and will perform if properly used and stored. The physical life of the rubber depends on how you use it.
