Smooth-On is one of the worlds leading manufaturers 3D modeling materials such as mold-making, casting and special effects materials but also industrial casting resins, adhesives and equipment. FormX is main distributor of Smooth-On products in Europe.
Mold Star™ Series - Easy to Use Silicone Mold Rubber
Mold Star™ silicones cure to soft, strong rubbers which are tear resistant and exhibit very low long term shrinkage. Molds made with Mold Star™ will last a long time in your mold library and are good for casting wax, gypsum, resins, and other materials. Cured Mold Star™ rubber is heat resistant up to 232°C and is suitable for casting low-temperature melt metal alloys.
One to One Mix Ratio - Mold Star™ rubbers are mixed 1A:1B by volume (no weighing scale necessary) for precise measurements even at a very low mass and cure at room temperature with negligible shrinkage.
No Vacuum Degassing -Mold Star™ silicones feature relatively low viscosities making vacuum degassing optional and is not required for most applications. A uniform flow will help minimize entrapped air.
Translucent Options -Make Fast Cut Molds or Castings Mold Star™14T, 19T, 20T, and 31T are translucent silicones for making fast molds or casting into alginate molds. They offer fast cure times, multiple hardnesses, and an infinite number of color effects achieved by adding Silc Pig™ silicone pigments or Cast Magic™ effects powders.
|product name||A:B mixing Ratio||Demold Time||Elongation at Break||Mixed Viscosity||Pot Life||Shore A Hardness||Tear Strength||Specific Gravity|

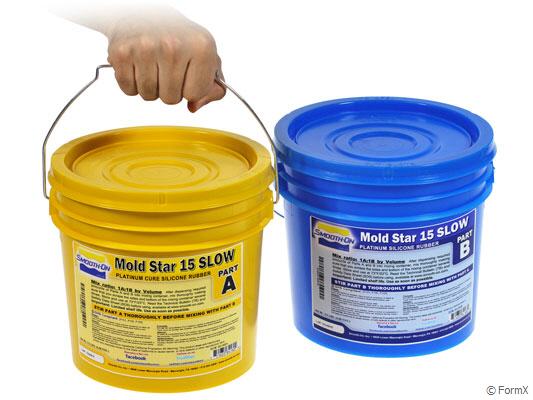

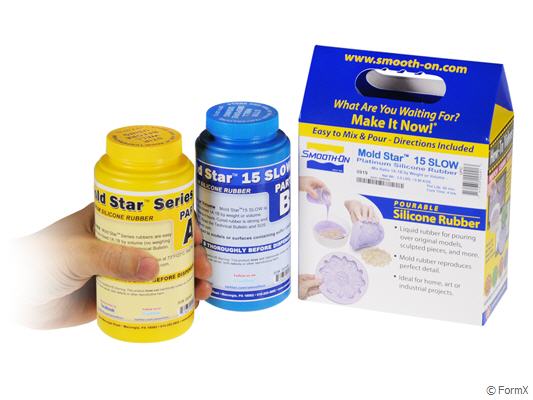

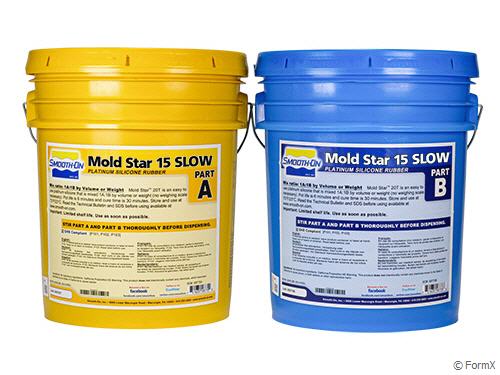

|Mold Star 15||1:1 by volume||4 hours||440%||12500 cps||50 min||15||88 pli||1.18 kg/lt|

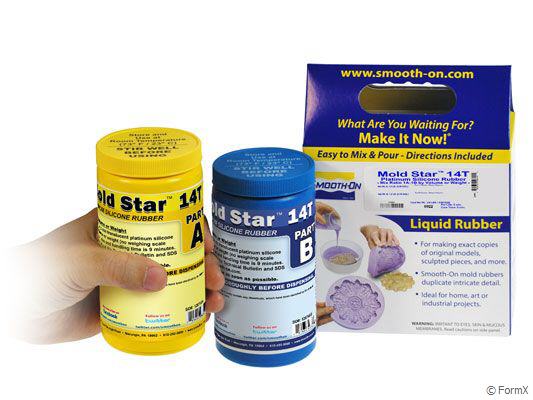

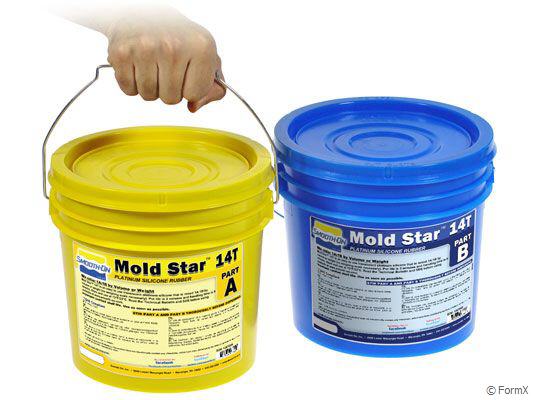

|Mold Star 14 T||1:1 by volume||9 min||740 %||11,000 cps||3 min||14A||90pli||1.08 g/cc|

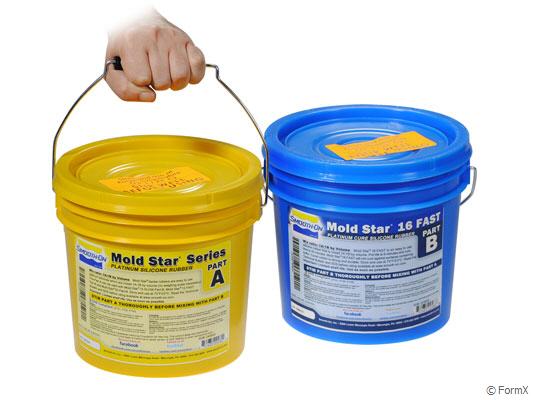

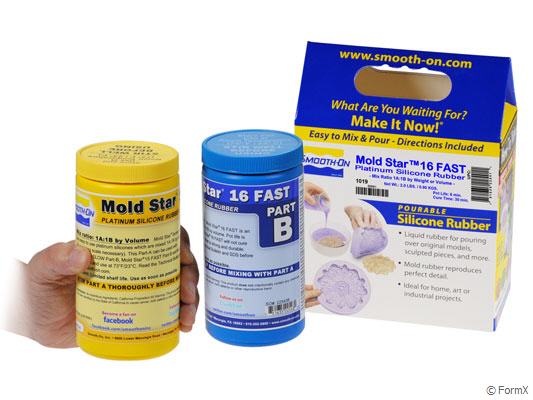

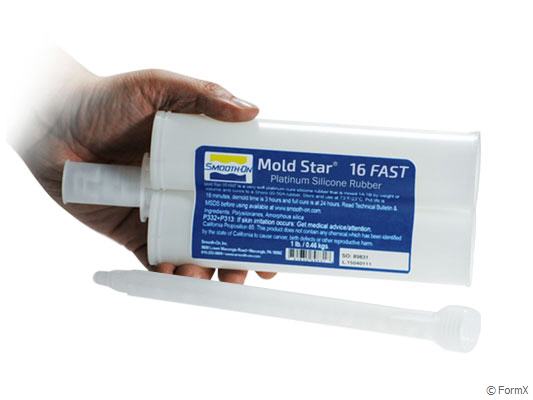

|Mold Star 16||1:1 by volume||30 min||440%||12500 cps||6 min||16||88 pli||1.18 kg/lt|

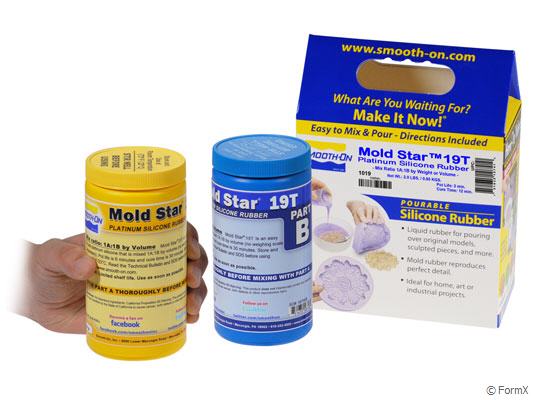

|Mold Star 19T||1:1 by volume||3 min||740%||11000 cps||12 min||19||90 pli||1.08 kg/lt|

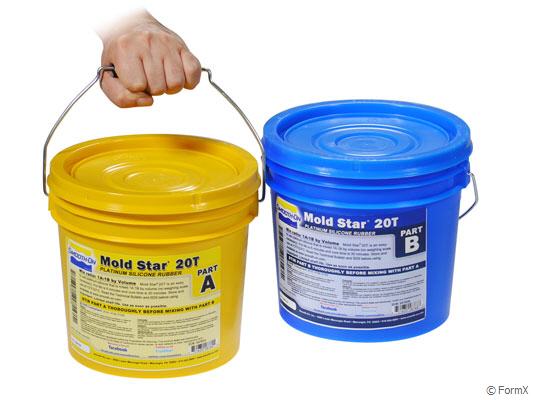

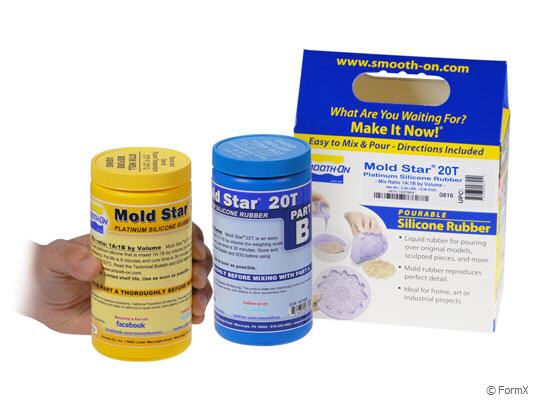

|Mold Star 20T||1:1 by volume||6 min||740%||11000 cps||30 min||20||90 pli||1.08 kg/lt|

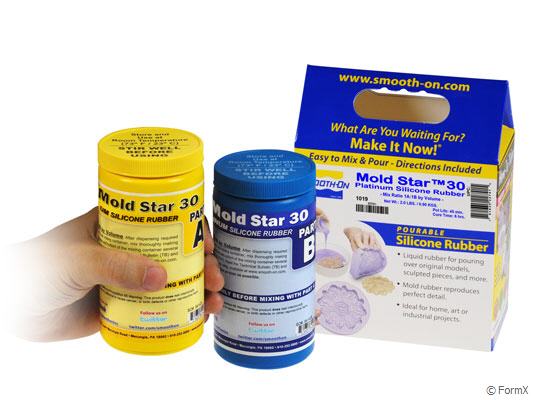

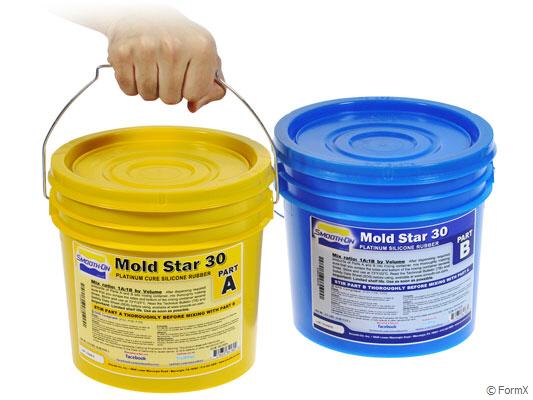

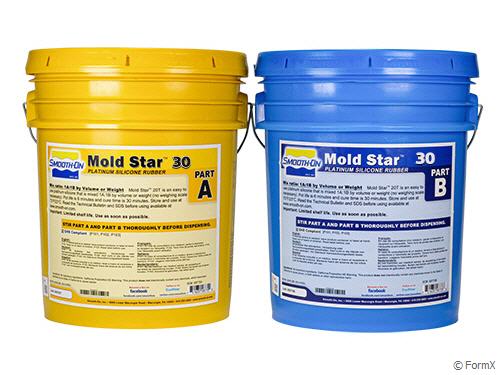

|Mold Star 30||1:1 by volume||6 hours||339%||12500 cps||45 min||30||88 pli||1.21 kg/lt|

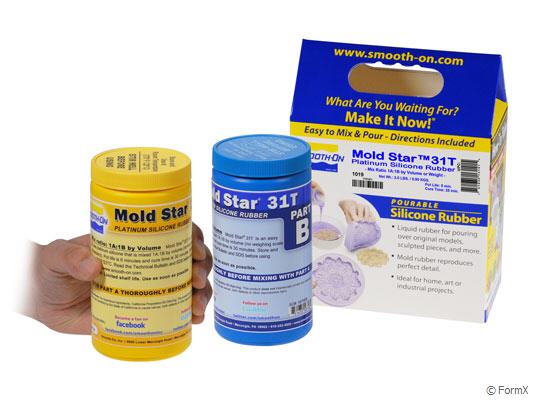

|Mold Star 31T||1:1 by volume||5 min||400%||11000 cps||23 min||31||90 pli||1.08 kg/lt|
Note: This product will not cure against surfaces containing sulfur, even when sealed.
Cure Inhibition - Addition cured silicone rubber may be inhibited by certain contaminants in or on the pattern to be molded resulting in tackiness at the pattern interface or a total lack of cure throughout the mold. Latex, sulfur clays, certain wood surfaces, newly cast polyester, epoxy or urethane rubber may cause inhibition. If compatibility between the rubber and the surface is a concern, a small-scale test is recommended. Apply a small amount of rubber onto a non-critical area of the pattern. Inhibition has occurred if the rubber is gummy or uncured after the recommended cure time has passed. To prevent inhibition, one or more coatings of a clear acrylic lacquer applied to the model surface is usually effective. Allow any sealer to thoroughly dry before applying rubber.
If you are not sure if your clay contains sulfur, do a small compatibility test before using for an important project.
Applying A Release Agent - Although not usually necessary, a release agent will make demolding easier when casting into most surfaces. Ease Release™ 200 is a proven release agent for releasing silicone from silicone or other surfaces. Mann Ease Release™ products are available from form x
Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.
Measuring & Mixing - Before you begin, pre-mix Part A and Part B separately. After dispensing required amounts of Parts A and B into mixing container (1A:1B by volume), mix thoroughly making sure that you scrape the sides and bottom of the mixing container several times. The rubber should be a uniform color with no streaks.
Optional... Vacuum Degassing - Although not necessary, vacuum degassing helps eliminate any entrapped air in pourable silicone rubber. After mixing parts A and B, vacuum material for 2-3 minutes at 0,98 bar, making sure that you leave enough room in container for product expansion.

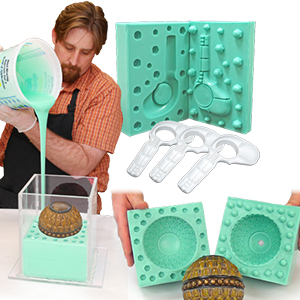

Pouring - For best results, pour your mixture in a single spot at the lowest point of the containment field. Let the rubber seek its own level. A uniform flow will help minimize entrapped air. If using as a mold material, the liquid rubber should level off at least 1.3 cm over the highest point of the model surface.
Heat Curing - Time to demold can be reduced by applying mild heat.
Adding an appropriate amount of Plat-Cat™ cure accelerator will also reduce demold time.
The pot life and cure times can be extended using Slo-Jo™ cure retarder.
Do not cure rubber where temperature is less than 18°C.
Mold Performance & Storage - The physical life of the mold depends on how you use it (materials cast, frequency, etc.). Casting abrasive materials such as concrete can quickly erode mold detail, while casting non-abrasive materials (wax) will not affect mold detail. Before storing, the mold should be cleaned with a soap solution and wiped fully dry. Two part (or more) molds should be assembled. Molds should be stored on a level surface in a cool, dry environment.
Safety - Use in a properly ventilated area (“room size” ventilation). Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. Wear vinyl gloves only. Latex gloves will inhibit the cure of the rubber. Store and use material at room temperature (23°C). Warmer temperatures will drastically reduce working time and cure time. Storing material at warmer temperatures will also reduce the usable shelf life of unused material. These products have a limited shelf life and should be used as soon as possible.
