FormCast Rhino

FormCast Rhino

The Form Cast RHINO liquid plastic is an ultra low viscosity resin with ivory color. When properly used it will yield strong, detailed and bubble free castings. Vacuum degassing is not necessary. Form Cast Rhino is suitable for industrial use such as making foundry patterns, core boxes, vacuum forming tools and prototyping. This resin may be mixed with various fillers and dyes. Cured castings are strong and durable and resistant to moisture and mild solvents. They can be sanded, drilled, sawed and - after degreasing - painted. Typical uses include the manufacturing of prototypes, models, sculptures, decorative articles, anatomical models etc .

- verry tough
- high impact resistance
- short demoulding time
- low viscosity

- mixing ratio 100 A - 100 B by weight
- viscosity 65 mPas
- ivory color
- working time approx. 3 minutes
- demold time 0,5 - 1,5 hrs
- shore hardness 72 D
- e-Modulus 1000 MPa
- impact resistance 26 kj / m2

Technical Bulletin [51 KB]

Rhino Standard

FormCast Rhino products

Standard

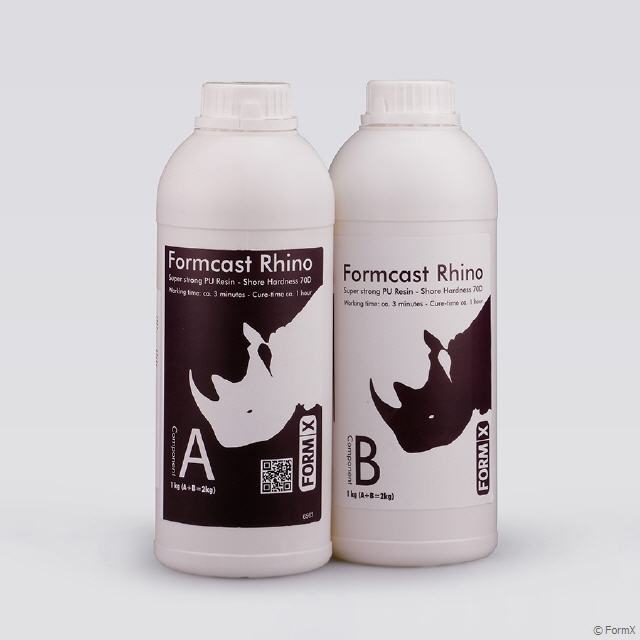

  • FormCast Rhino /1kg

    Shore D72 | Cure Time: 30 - 90 min

    25,25 EUR (incl. 21% USt. zzgl. Versand)

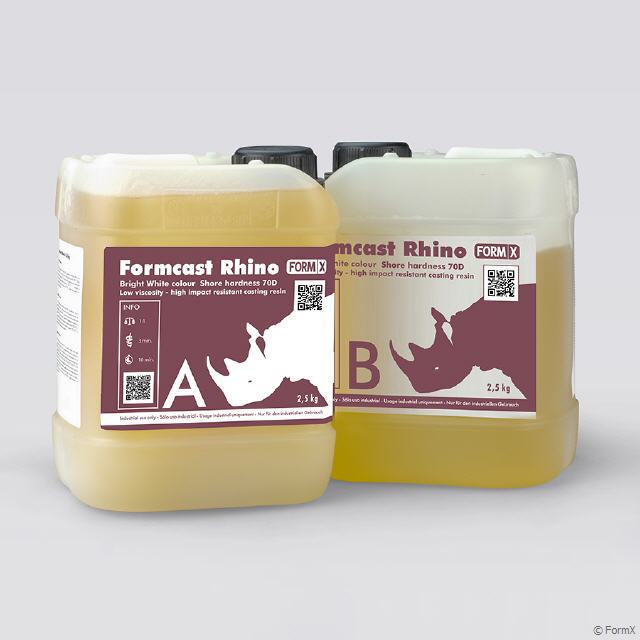

  • FormCast Rhino /5kg

    Shore D72 | Cure Time: 30 - 90 min

    110,46 EUR (incl. 21% USt. zzgl. Versand)

Standard

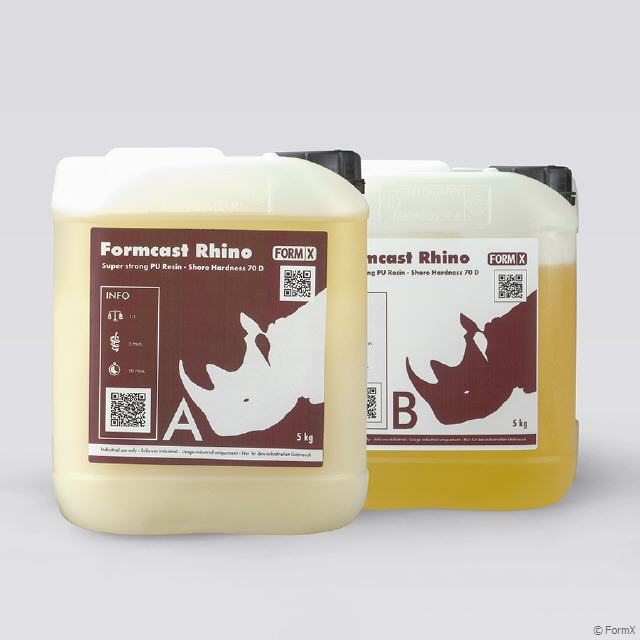

  • FormCast Rhino /10kg

    Shore D72 | Cure Time: 30 - 90 min

    198,83 EUR (incl. 21% USt. zzgl. Versand)

  • FormCast Rhino /20kg

    Shore D72 | Cure Time: 30 - 90 min

    357,89 EUR (incl. 21% USt. zzgl. Versand)

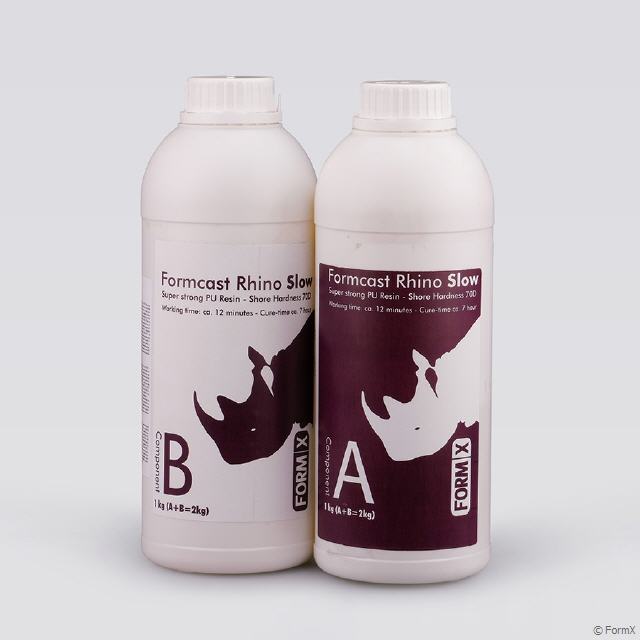

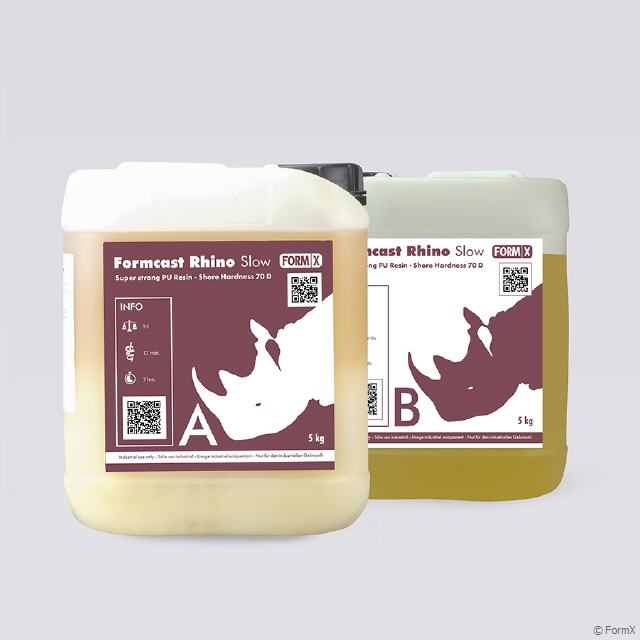

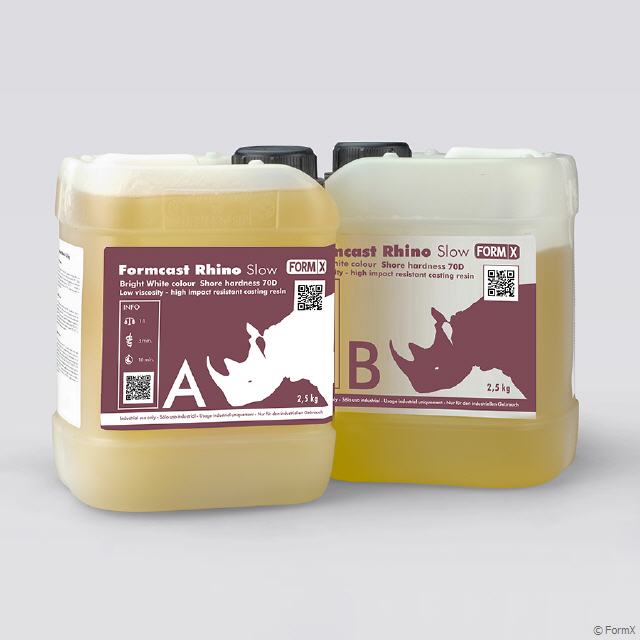

Rhino Slow

Rhino Slow

Video

FormCast Rhino resin testing

How to use

How to Use

Stir the individual components well before use. Weigh or measure both parts accurately and assemble in a clean and dry container and mix for 30 to 60 seconds. For the mixing cup, best use PP or PE plastic cups. Avoid contact with moisture as this will cause foam formation of the resin. When using Urefil filler, add these to the individual components and stir untill both have the same viscosity. Then let both of these components effortlessly blend together.
